Product Description:

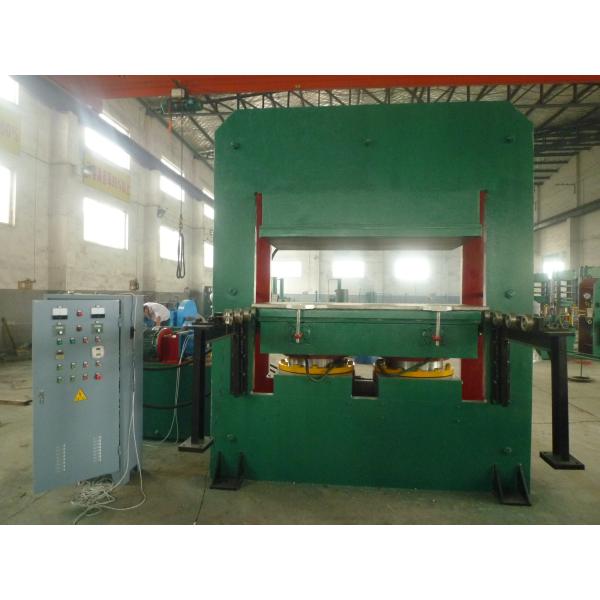

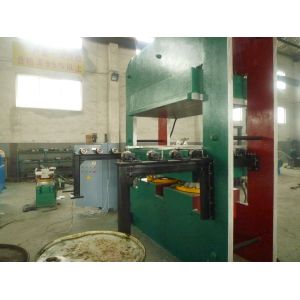

The Rubber Vulcanizing Press Machine is a kind of rubber press
equipment that adopts advanced vulcanizing press technology and is
widely used in rubber and plastic product production. It is
equipped with electric heating, and its voltage is 380V. The
pressure range is 0-25MPa, the temperature range is 0-300℃, and the
cylinder stroke is 200mm. This rubber press machine is easy to
operate, reliable in performance, and has high production
efficiency. It is widely used by many manufacturers in rubber and
plastic product production. It is an ideal choice for rubber and
plastic product processing.
This equipment is mainly exported to Russia for the production of
rubber sheets, rubber floor mats, and supporting products on rubber
tracks. Its main advantages are energy-saving, easy to control, and
high product qualification rate. If you are manufacturing this
product, you can learn about it
Features:
1.This machine is suitable for vulcanizing all kinds of rubber
products. It is an advanced hot pressing equipment for pressing all
kinds of thermosetting rubber.
2.There are three heating methods: electric heating, steam heating
and heat transfer oil heating.
3.Column curing press is generally a conventional product, the
model is 25 tons to 160 tons, frame curing press is more than 160
tons.
4. The electric heating system adopts tubular resistance heater,
which is installed in the hot plate and heated by the heating plate
(customers without boiler). It is an ideal heating method with low
power consumption, no glue forming, even temperature and good
insulation.
5. The machine has excellent material selection, wide processing
range, and various indicators can meet the standard requirements of
HG/ t3034-1999, with a good price performance ratio.
6.The machine can be customized according to the needs of
customers.
Technical Parameters:
| Name | Rubber Vulcanizing Press Machine |
|---|
| Type | Vulcanizing Press |
| Cylinder Stroke | 200mm |
| Voltage | 380V |
| Vulcanizing Time | 0-999s |
| Certificate | CE |
| Pressure Range | 0-25MPa |
| Material | Steel |
| Temperature Range | 0-300℃ |
| Control System | PLC |
Customization:
Rubber Vulcanizing Press Machine
Brand Name: beishun
Model Number: XLB-350×350×2
Place of Origin: qingdao
Certification: CE,ISO
Minimum Order Quantity: 1pcs
Price: 5000USD-100000USD
Delivery Time: 45days
Payment Terms: T/T, L/C,
Supply Ability: 30set/years
Type: Vulcanizing Press Machine
Name: Rubber Vulcanizing Press Machine
Temperature Range: 0-300℃
Control System: PLC
Vulcanizing Time: 0-999s
With our Vulcanizing Press Machine, you can get the best rubber vulcanizing system for your
production. Our Rubber Vulcanizing Press Machine offers temperature range of 0-300℃, PLC control system and
vulcanizing time of 0-999s.
Packing and Shipping:
Packaging and Shipping for Rubber Vulcanizing Press Machine:
- The machine will be packaged in a wooden case for transportation.
- The wooden case will be placed on a pallet for shipping.
- The pallet will be securely fastened to the truck bed for safe
transit.
- The truck driver will provide the necessary documents for customs
clearance.
- The customer will be informed of the arrival of the machine by
email.
FAQ:
- Q1: What is the brand name of the Rubber plateVulcanizing Press
Machine?
- A1:The brand name of the Rubber Vulcanizing Press Machine is
Beishun.
- Q2: What is the model number of the Rubber Vulcanizing Press
Machine?
- A2:The model number of the Rubber Vulcanizing Press Machine is
XLB-350×350×2.
- Q3: What is the place of origin of the Rubber Vulcanizing Press
Machine?
- A3:The place of origin of the Rubber Vulcanizing Press Machine is
Qingdao.
- Q4: What are the certifications of the Rubber Vulcanizing Press
Machine?
- A4:The certifications of the Rubber Vulcanizing Press Machine are
CE and ISO.
- Q5: What is the minimum order quantity of the Rubber Vulcanizing
Press Machine?
- A5:The minimum order quantity of the Rubber Vulcanizing Press
Machine is 1pcs.
