Product Description:

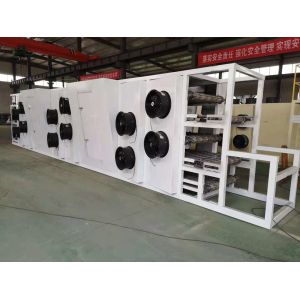

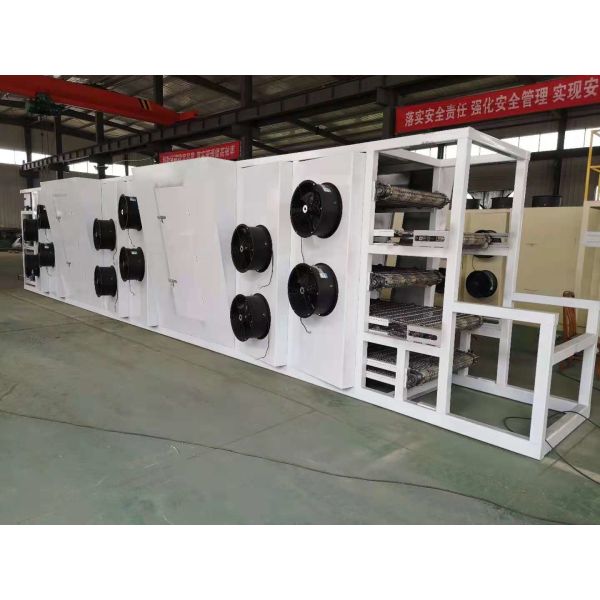

The Batch Off Rubber Cooling Machine is a powerful and reliable
rubber cooling system that is designed for efficient cooling of
rubber boards, mats and sheets. It is powered by electric drive and
features a welded steel frame for superior strength and durability.
The voltage of this machine ranges from 220V-480V, and it can cool
rubber boards, mats and sheets within 5 minutes. This rubber
cooling machine is reliable, efficient and easy to operate.
This Batch Off Rubber Cooling Machine is ideal for cooling rubber
boards, mats and sheets, as it offers superior cooling performance
and is built for long-term reliability. Its robust design ensures
excellent cooling efficiency, making it a great choice for rubber
production factories. Its welded steel frame also ensures superior
strength and durability, giving you peace of mind when running your
rubber cooling system.
This rubber cooling machine is a great choice for rubber production
factories thanks to its reliable, efficient and easy to operate
design. It's also highly efficient, offering fast cooling times of
5 minutes or less. With its superior cooling performance and welded
steel frame, this Batch Off Rubber Cooling Machine is the perfect
choice for cooling rubber boards, mats and sheets.
Features:
- Product Name: Batch Off Rubber Cooling Machine
- Warranty: 2 Years
- Voltage: 220V-480v
- Cooling Method: Air Cooling/water Cooling
- Size: Custom Made
- Features: Conveyor belt cooling machine, Rubber tyre cooling machine, Rubber
cooling equipment
Technical Parameters:
| Name | Value |
|---|
| Product Name | Batch Off Rubber Cooling Machine |
| Power | Electric Drive |
| Control System | PLC Automatic |
| Cooling Method | Air Cooling/water Cooling |
| Material | Steel |
| Cooling Capacity | 3-35 Meters |
| Cooling Time | 5 Minutes |
| Voltage | 220V-480v |
| Size | Custom Made |
| Cooling Media | Rubber Products |
| Structure | Welded Steel Frame |
| Keywords | Conveyor Belt Cooling Machine, Rubber Tyre Cooling Machine, Rubber
Cooling Equipment |
Applications:
Beishun XPG-700 Rubber Sheet Cooling Machine is a perfect choice
for rubber sheet cooling, which is certified with CE, ISO, SGS. It
is made of high quality welded steel frame and steel material, and
its cooling method is air cooling or water cooling, driven by
electric power. With voltage of 220V-480v, it can be ordered in
minimum quantity of 1set and the price is between USD 5000-100000.
It can be packed in pallets, packing films and containers, and its
delivery time is within 30-45 days. The payment terms are L/C, T/T
and its annual supply ability is 50set.
| Model | XPG-600 | XPG-800 | XPG-900 |
| Max. rubber sheet width | 600mm | 800mm | 900mm |
| The thickness of the rubber sheet | 4~10mm | 4~10mm | 6~12mm |
| Linear speed of taking-in conveyor | 3~24m/min | 3~35m/min | 4~40m/min |
| Linear speed of sheet hanging bar | 1-1.3m/min | 1-1.3m/min | 1-1.3m/min |
| Hanging height of the sheet hanging bar | 1000-1500m | 1000-1500m | 1000-1500m |
| Number of cooling fans | 12 | 20~32 | 32~34 |
| Power | 16KW | 25~34KW | 250KW |
| Overall Dimension(mm) | 14250X3300X3405 | 16800X3400X3520 | 6000X2850X4450 |
Customization:
Batch Off Rubber Cooling Machine
Brand Name: Beishun
Model Number: XPG-700
Place of Origin: Qingdao, China
Certification: CE, ISO, SGS
Minimum Order Quantity: 1 set
Price: USD 5000-100000 /Set
Packaging Details: Pallets, packing films, containers
Delivery Time: 30-45days
Payment Terms: L/C, T/T
Supply Ability: 50 sets/year
Control System: PLC Automatic
Cooling Media: Rubber Products
Cooling Time: 5 Minutes
Warranty: 2 Years
This batch off rubber cooling machine is a special equipment which
is used to cool and transfer rubber products. It is suitable for
cooling and transferring various rubber conveyor belt, rubber
board, rubber mat and other rubber products. The cooling media of
this machine is rubber products, which is operated by PLC automatic
control system. It's cooling time is only 5 minutes and its
warranty is 2 years.
Support and Services:
Technical Support and Service for Batch Off Rubber Cooling Machine
Our company provides technical support and service for Batch Off
Rubber Cooling Machine. We have experienced engineers and
technicians who can help you with the maintenance and repair of the
machine.
Our technical support team is available 24/7 to provide you with
the best service. We are committed to providing our customers with
the highest quality and fastest service possible. Our team of
experts will be able to answer any questions you may have and
provide troubleshooting advice.
We also offer a comprehensive warranty for our Batch Off Rubber
Cooling Machine. The warranty covers all parts and labor for up to
one year from the date of purchase. If any part or component of the
machine fails within the warranty period, we will repair or replace
it free of charge.
Packing and Shipping:
Packaging and Shipping
The Batch Off Rubber Cooling Machine will be packaged in a wooden
crate and shipped via common carrier. The customer should expect
the machine to arrive in a timely manner and in perfect condition.
The crate should be opened and inspected upon receipt for any
damage that may have occurred during the shipping process. If any
damage is observed, the customer should contact the carrier
immediately to report the damage and file a claim.
